CNC H Beam Drilling Machine - CDA, researched, manufactured and distributed by Chau Da Company Limited

A high-quality solution for processing H-BEAM steel, in steel structure production, bridge construction, shipyards and various fields of the construction industry.

CNC H-beam drilling machine with 3 drilling heads are automatically controlled and operate simultaneously.

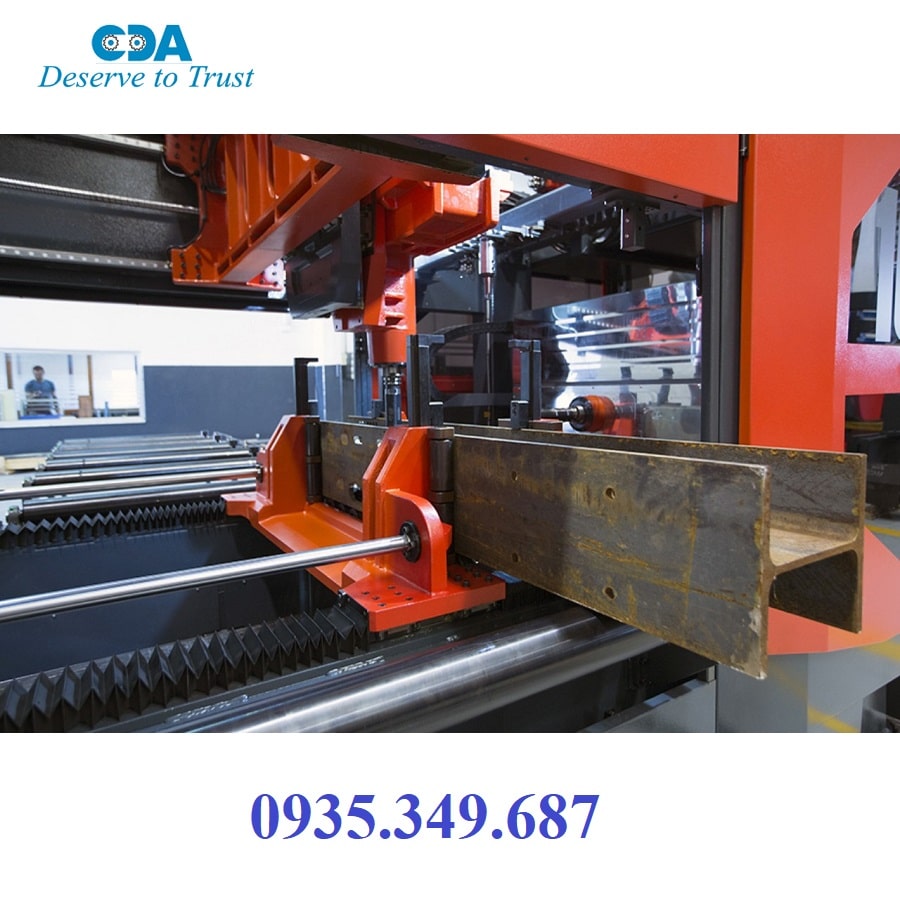

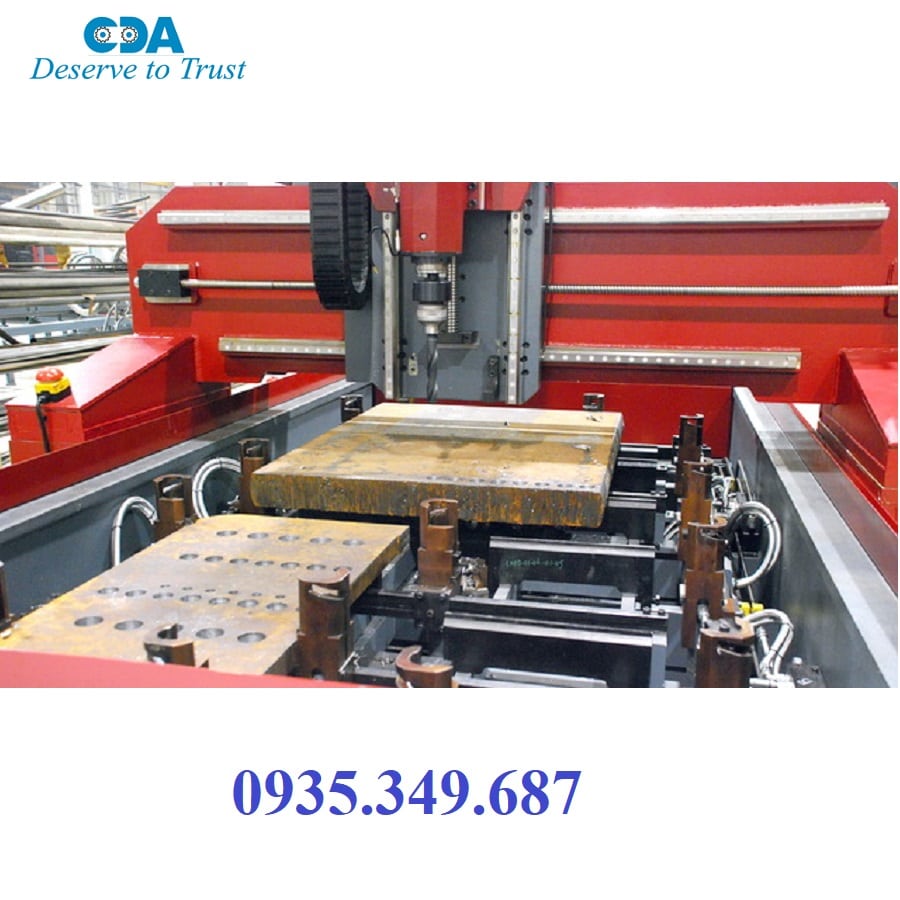

The structure of the CNC H-beam drilling machine includes the following main parts:

- Main machine (H beam drilling machine).

- 3 drilling heads operate simultaneously, in 3 dimensions of the H beam and are controlled by CNC.

- The H-beam driving robot, also known as the H-beam driver, automatically moves forward and backward to bring the H-beam into the drilling position.

- H-beam drive roller conveyor.

- CNC controller.

Specifications of CNC H beam drilling machine

- H beam size that the machine can drill: 150x1000mm to 1800x1500mm

- H-beam length drilled on the machine: 6M/12M/15M/18M

- Maximum bore diameter Ø32mm / Ø50mm

- Maximum drilling thickness on beam: 50mm

- Position accuracy of the machine: ±0.01mm

- Drilling speed: 100 - 600vg/min (stepless control).

- CNC machine controller for 3 drilling heads and H-beam driving robot

CNC H-beam drilling machine is installed by our company, instructed on how to use it and transferred operating techniques in the best way.

Operational features of CNC H beam drilling machine:

- During the hole drilling process, 3 drilling heads will automatically detect the H-beam plane to determine the drilling thickness and change the drilling speed to suit the beam surface.

- During the drilling process, the 3 drilling heads are controlled automatically, automatically moving forward and backward when drilling to complete the hole without having to adjust and set. After each drilling through the beam surface, the drilling speed is automatically slowed down by the machine and the cutting force is reduced. Therefore the machine operates very safely and is easy to use.

- The drilling height of the drill beam and drill length are completely automatically detected without the need for initial setup.

- Before drilling, there is no need to set the beam face thickness and drill bit length, the drill will automatically detect and calculate thanks to the "drilling bit to drill" feature, thus saving processing time.

- With 3 automatic drilling heads arranged in 3 directions, the machine can perform 3-dimensional drilling of beams including beam belly drilling, left and right beam flange drilling.

- The CNC controller can load the drilling program with Autocad drawings, or DXF files, NC files and can edit the machining program easily on the machine.

- The beam drilling machine has the function of marking the "marking label" on the H beam. After completing the drilling program, before the H beam is taken to be cut or assembled to the assembly position. The H-beam drilling machine will automatically mark the H-beam with the characters specified on the drawing, helping to manage and assemble quickly, without confusion...
